ARM Doors
480 LWT Sliding Door

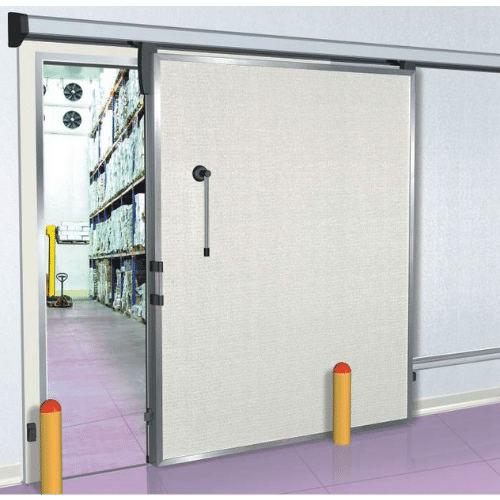

The 480 LWT is a lightweight insulated sliding door from ARM Doors for cold storage rooms. Its 100 or 120 mm (3.9 or 4.7 in) polyurethane-foam panel is set in a welded 1.5 mm stainless steel frame, with heaters built into the frame and threshold.
- Door panel thickness100 mm or 120 mm
- FillingPolyurethane foam with a density of 43 kg / m3direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Options
- Automation for sliding doors
- 1mm stainless steel sandwich panel processing
- Cold store door lock with safe exit function
- Stainless steel rail cover
Specifications
| Door panel thickness | 100 mm or 120 mm |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded |
| Seals | Italian two-component double |
| Heaters | in the channel on the frame and in the threshold embedded in the floor with a heating power of 30 W / m |
| Rail | stainless steel (composed of three profiles 1.5 mm and 2 mm) |
| Outer frame | profiled PVC reinforced |
| Rail cover | made of coated sheet RAL 9006 |
