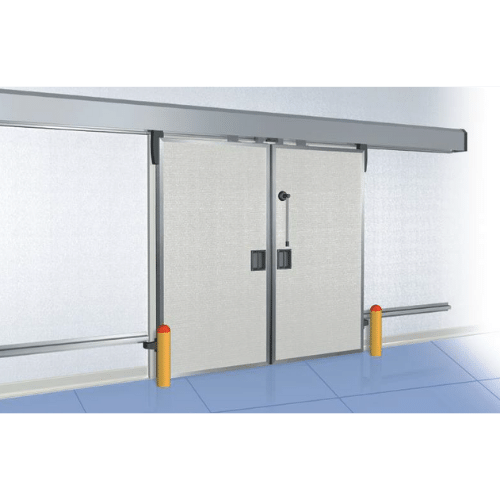

480 TN Double-Leaf Refrigerated Sliding Doors
480 TN Double-Leaf Refrigerated Sliding Doors from ARM Doors are sliding doors with an 80 mm (3.1 in) polyurethane-foam panel covered in 1.6 mm (0.06 in) Glasbord ArmorTuf laminate. The welded frame is 1.5 mm (0.06 in) stainless steel, with a bottom non-threshold seal and a reinforced profiled PVC outer frame.
- Door panel thickness80 mm,
- FillingPolyurethane foam with a density of 43 kg / m3high pressure direct injection
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Options
- Cold store door lock with safe exit function
- 1mm stainless steel sandwich panel processing
- Automation for sliding doors
- Machining of stainless steel frame 1 mm
- Stainless steel rail cover
Specifications
| Door panel thickness | 80 mm, |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3high pressure direct injection |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded |
| Seals | two-component, bottom non-threshold seal |
| Rail cover | made of coated sheet RAL 9006 |
| Outer frame | profiled PVC reinforced |
