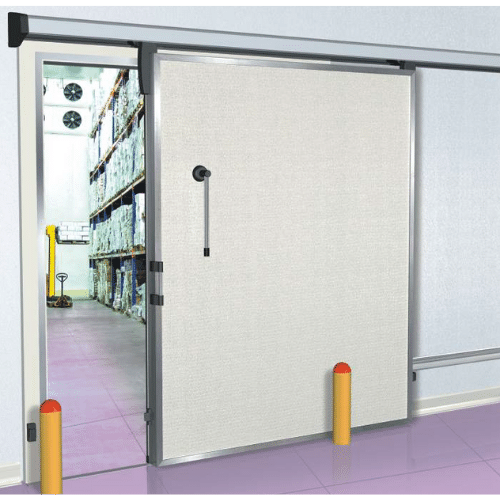

480 TN Sliding Door
The 480 TN Sliding Door from ARM Doors is a sliding door with an 80 or 65 mm (3.1 or 2.6 in) panel of polyurethane foam, covered in 1.6 mm (0.06 in) ArmorTuf glass fiber reinforced laminate. The welded 1.5 mm (0.06 in) stainless steel frame has two-component seals and a bottom seal without a threshold.
- Door panel thickness80 mm or 65 mm
- FillingPolyurethane foam with a density of 43 kg / m3direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Options
- Cold store door lock with safe exit function
- 1mm stainless steel sandwich panel processing
- Automation for sliding doors
- Machining of stainless steel frame 1 mm
- Stainless steel rail cover
Specifications
| Door panel thickness | 80 mm or 65 mm |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded |
| Seals | two-component, bottom non-threshold seal |
| Rail | stainless steel (composed of three profiles 1.5 mm and 2 mm) – grade 0H18N9 |
| Rail cover | made of coated sheet RAL 9006 |
| Outer frame | profiled PVC reinforced |
