ARM Doors
480 TN Sliding Doors to Controlled Atmosphere

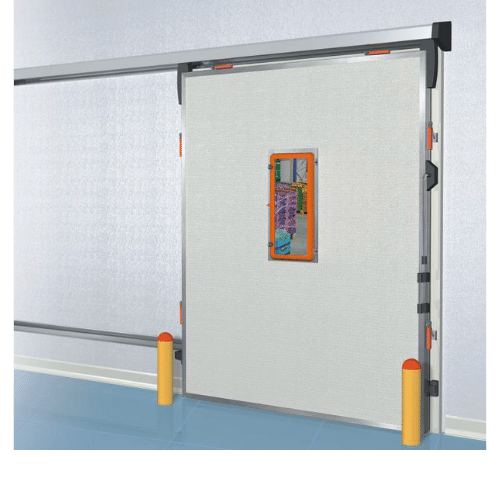

The 480 TN Sliding Doors to Controlled Atmosphere from ARM Doors have an 80 mm (3.1 in) polyurethane-foam panel in a welded 1.5 mm (0.06 in) stainless steel frame. They include an inspection window and holding clamps for full tightness, with automation available as an option.
- Door panel thickness80 mm
- FillingPolyurethane foam with a density of 43 kg / m3 direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Features
- Inspection window
- Holding clamps full tightness
Options
- Automation for sliding doors
- 1mm stainless steel sandwich panel processing
- Refrigerated door lock with safe exit function
- Machining of stainless steel frame 1 mm
- Stainless steel rail cover
Specifications
| Door panel thickness | 80 mm |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3 direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded |
| Seals | special reinforced two-component gaskets, bottom gasket without threshold |
| Rail | stainless steel (composed of three profiles 1.5 mm and 2 mm) |
| Rail cover | made of coated sheet RAL 9006 |
| Outer frame | profiled PVC reinforced |
