ARM Doors

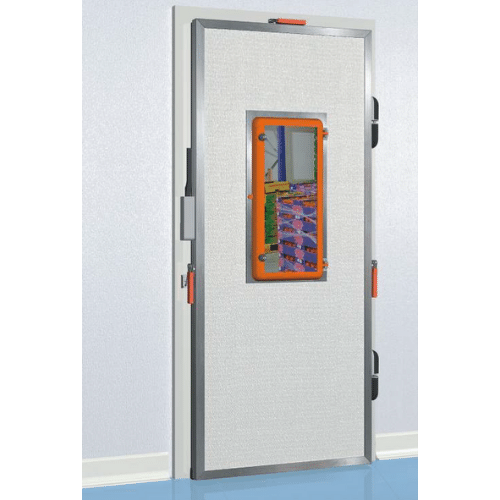

500 TN Hinged Door to Controlled Atmosphere
The 500 TN Hinged Door to Controlled Atmosphere from ARM Doors is a hinged door with a 65 or 80 mm (2.6 or 3.1 in) polyurethane-foam panel covered in 1.6 mm (0.06 in) Glasbord ArmorTuf laminate. It has a welded 1.5 mm (0.06 in) stainless steel frame, Italian two-component seals and an inspection window.
- Door panel thickness65 mm or 80 mm
- FillingPolyurethane foam with a density of 43 kg / m3 direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded – grade 0H18N9
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Features
- Inspection window
- Clamps ensuring full tightness
Options
- 1mm stainless steel sandwich panel processing
- Machining of stainless steel frame 1 mm
Specifications
| Door panel thickness | 65 mm or 80 mm |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3 direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded – grade 0H18N9 |
| Seals | Italian two-component, bottom seal without threshold |
| Outer frame | profiled PVC reinforced |
| Lock | latch with lever |
| Hinges | with lifting made of composite materials |
