ARM Doors

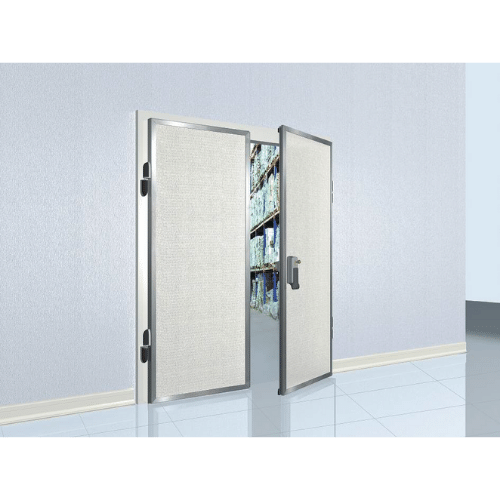

500 TN Hinged Double-Leaf Doors
The 500 TN Hinged Double-Leaf Doors from ARM Doors are hinged double-leaf doors with an 80 mm (3.1 in) polyurethane foam panel covered in 1.6 mm (0.06 in) ArmorTuf glass fiber laminate. They have a welded 1.5 mm (0.06 in) stainless steel frame, Italian two-component seals and a key lock with safe exit function.
- Door panel thickness80 mm,
- FillingPolyurethane foam with a density of 43 kg / m3direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded – grade 0H18N9
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Options
- 1mm stainless steel sandwich panel processing
- Machining of stainless steel frame 1 mm
Specifications
| Door panel thickness | 80 mm, |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded – grade 0H18N9 |
| Seals | Italian two-component, bottom seal without threshold |
| Outer frame | profiled PVC reinforced |
| Lock | key, with safe exit function, made of composite materials |
| Hinges | with lifting made of composite materials |
