ARM Doors

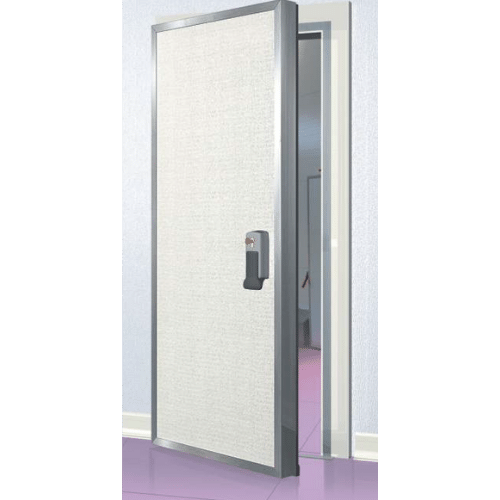

604 LWT Hinged Door
The 604 LWT Hinged Door from ARM Doors is a hinged door with a 100 or 120 mm (3.9 or 4.7 in) polyurethane-foam panel in a welded 1.5 mm (0.06 in) stainless steel frame. Sectional heaters of 30 W/m sit in the frame channel and a floor-embedded threshold, and the key lock has a safe exit function.
- Door panel thickness100 mm or 120 mm
- FillingPolyurethane foam with a density of 43 kg / m3 direct injection under high pressure
- CoverageGlasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced)
- Door frame1.5 mm stainless steel – welded
Talk to our team
Or call (201) 256-1231
Full description
For 15 years, the ARM Doors company has been producing innovative door systems that are practical in form and function. Both in plants producing, storing and distributing food – our solutions have proven themselves. ARM Doors aims to provide high quality and durability at affordable prices.
Options
- 1mm stainless steel sandwich panel processing
- Frame around the opening
- Machining of stainless steel frame 1 mm
Specifications
| Door panel thickness | 100 mm or 120 mm |
|---|---|
| Filling | Polyurethane foam with a density of 43 kg / m3 direct injection under high pressure |
| Coverage | Glasbord ArmorTuf® laminate th. 1.6mm (woven glass fiber reinforced) |
| Door frame | 1.5 mm stainless steel – welded |
| Seals | Italian two-component double |
| Heaters | sectional in the channel on the frame and in a threshold embedded in the floor with a heating power of 30 w / m |
| Outer frame | profiled PVC reinforced |
| Lock | key, with safe exit function, made of composite materials |
| Hinges | with lifting made of composite materials |
