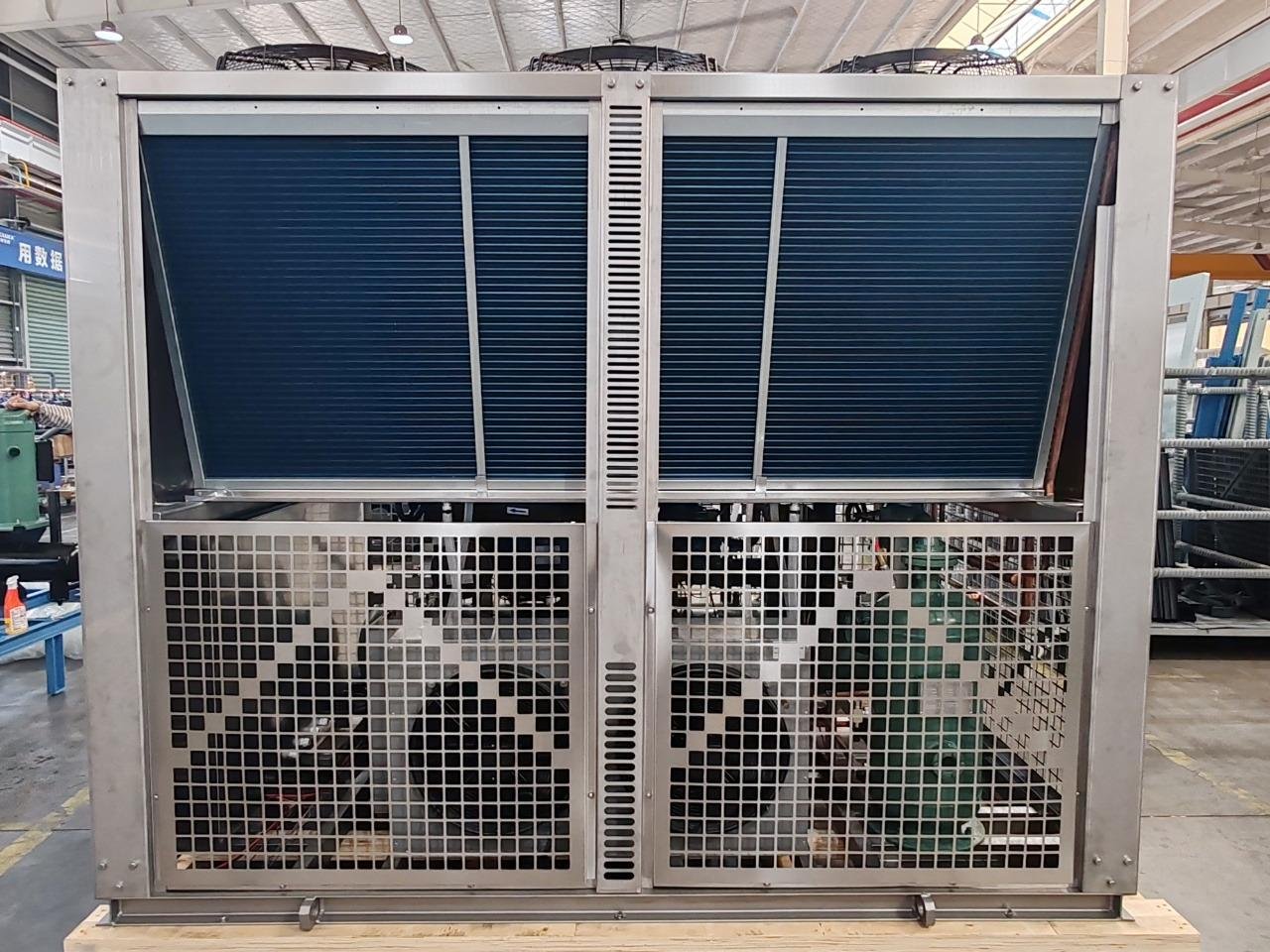

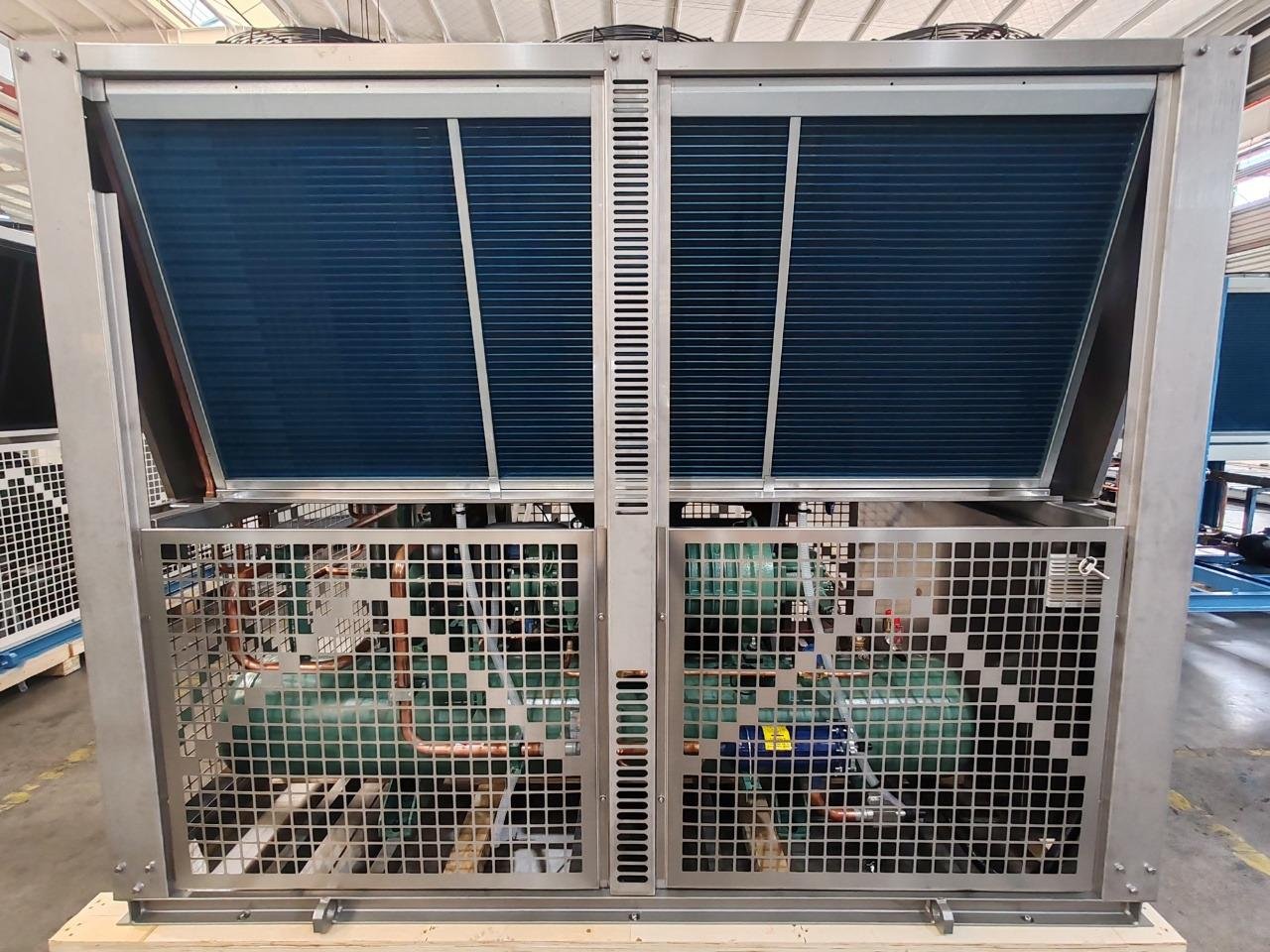

Outdoor condensing unit with two Bitzer semi-hermetic compressors behind the grille

Cryo Systems

Refrigeration Condensing Unit

Name: Refrigeration Condensing Unit
Brand: Cryo Systems

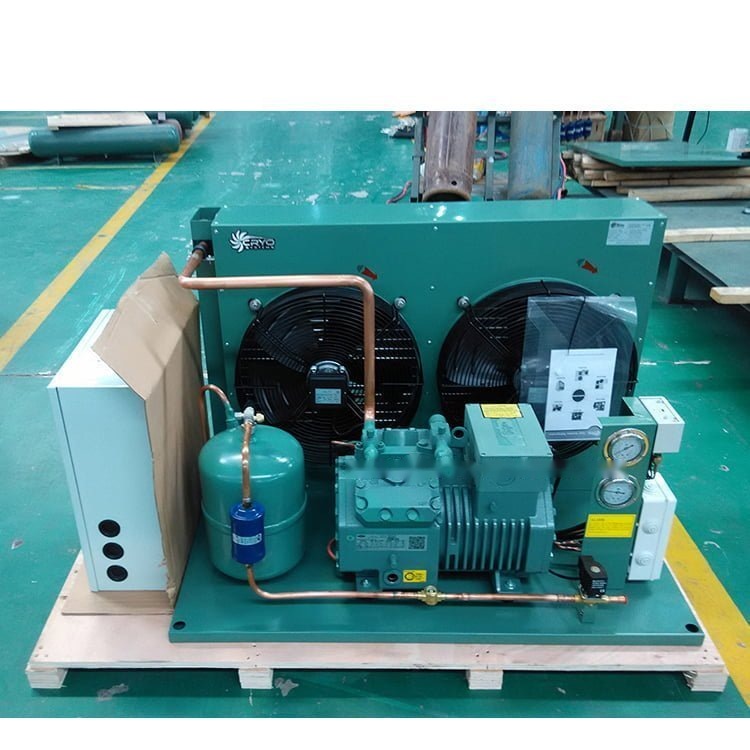

The Refrigeration Condensing Unit from Cryo Systems is the outdoor version of the Bitzer Condensing Unit: a Bitzer ECOLINE semi-hermetic piston compressor and air-cooled condenser in a dust-proof housing. It runs from 2 to 176 HP for 14 to 41°F (−10 to 5°C) and −22 to 5°F (−30 to −15°C) storage, on R404A, R448A, R449A or R507A.

Talk to our team

Or call (201) 256-1231

Full description

refrigeration condensing unit, 2HP to 15Hp scroll compressor, low and medium temperature, for vegetable, fruit, meat storage.
From Cryo Systems

1. Features:

Bitzer semi-hermetic piston compressor, ECOLINE series

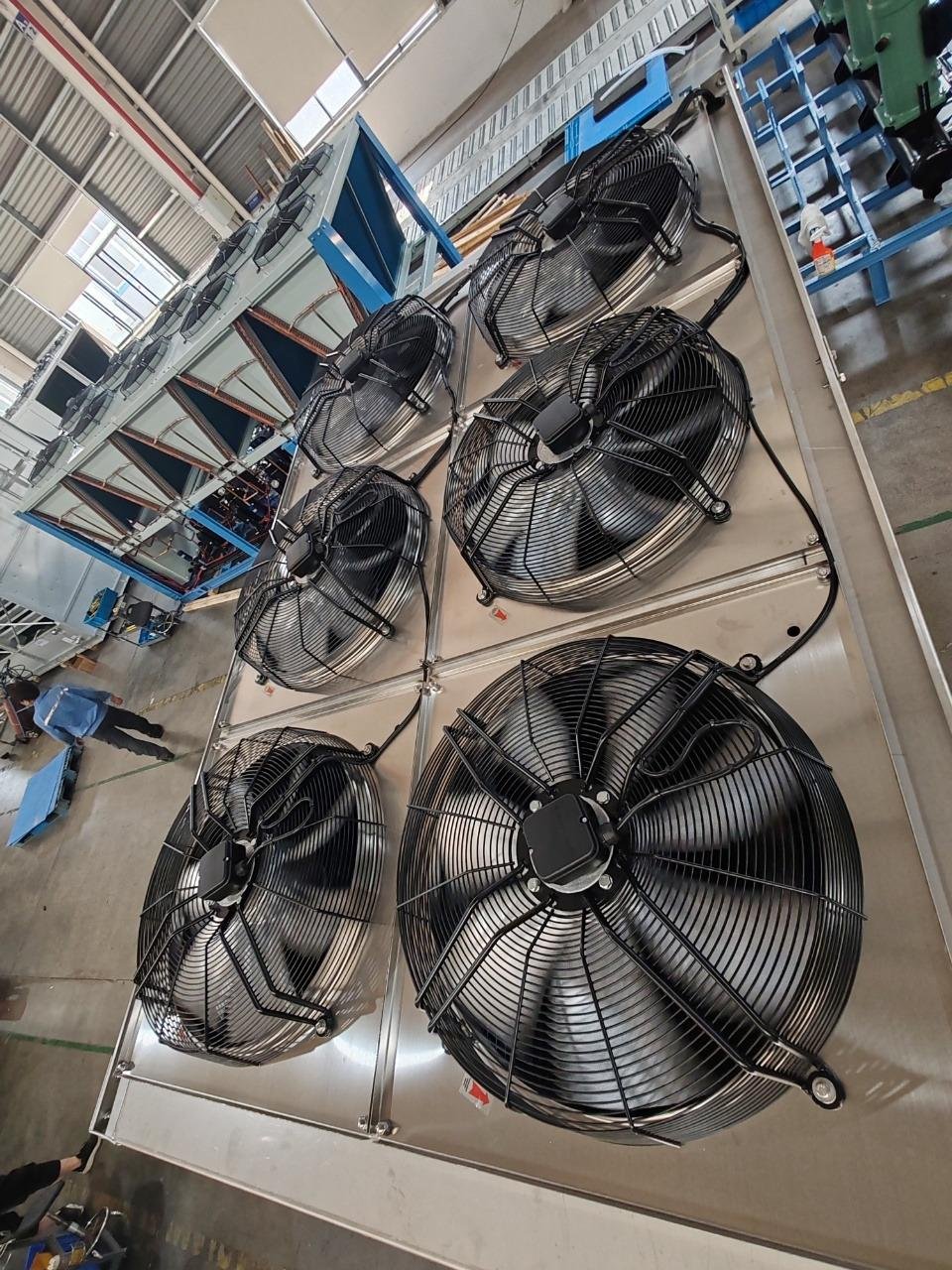

Copper tube-Aluminum Fin air cooled condenser
High-quality Chinese brand refrigeration parts; can be updated to Danfoss brand

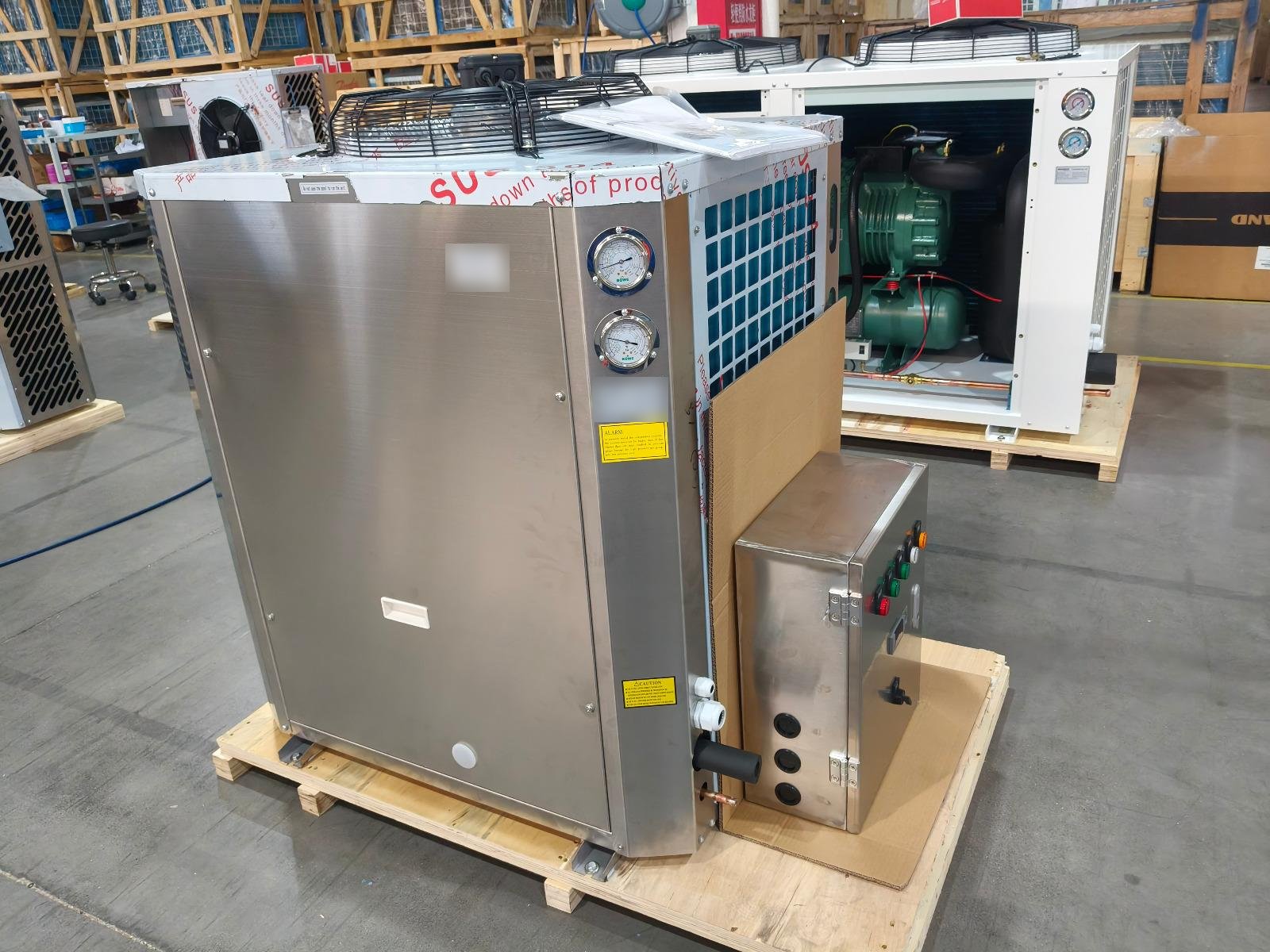

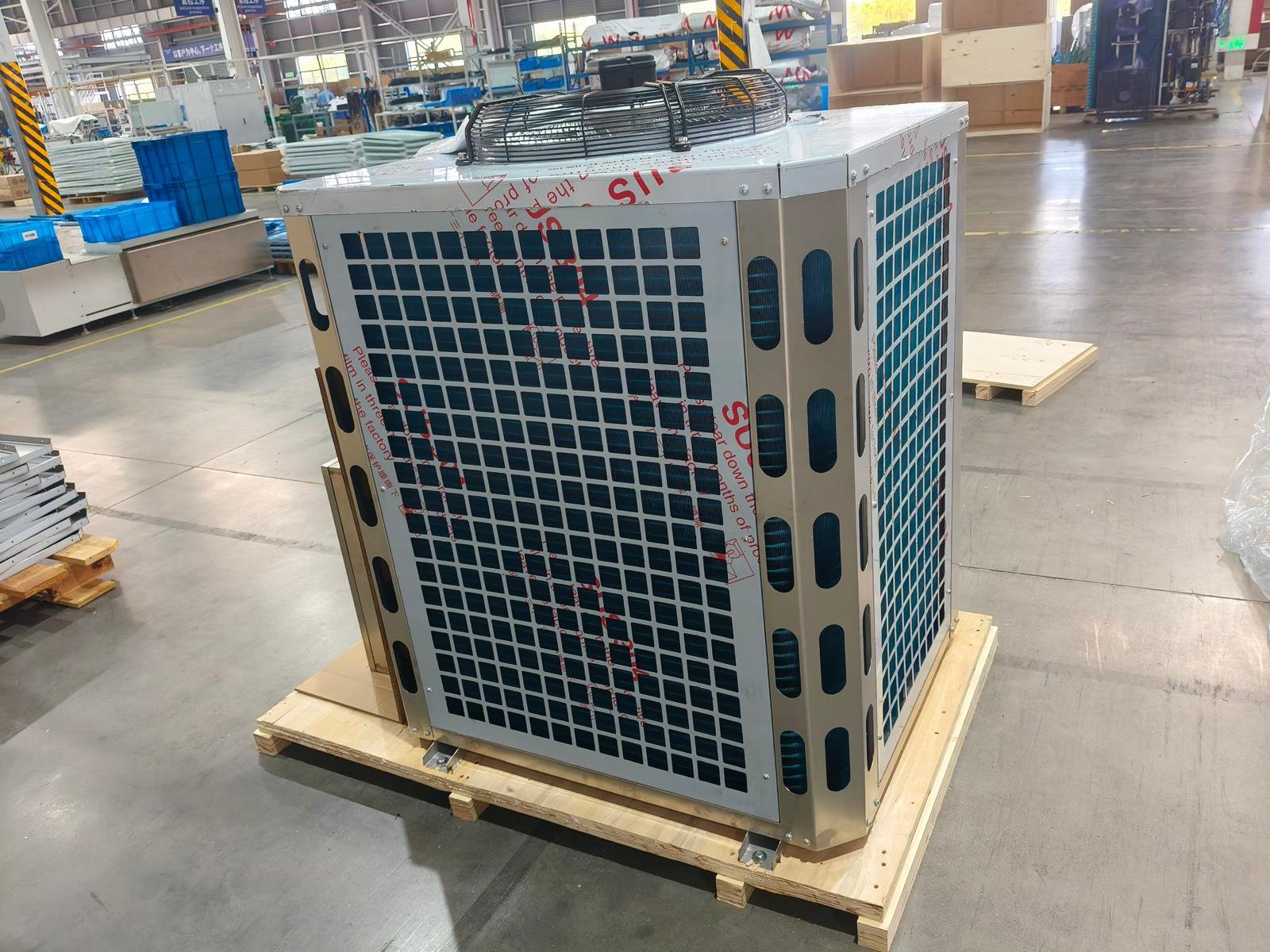

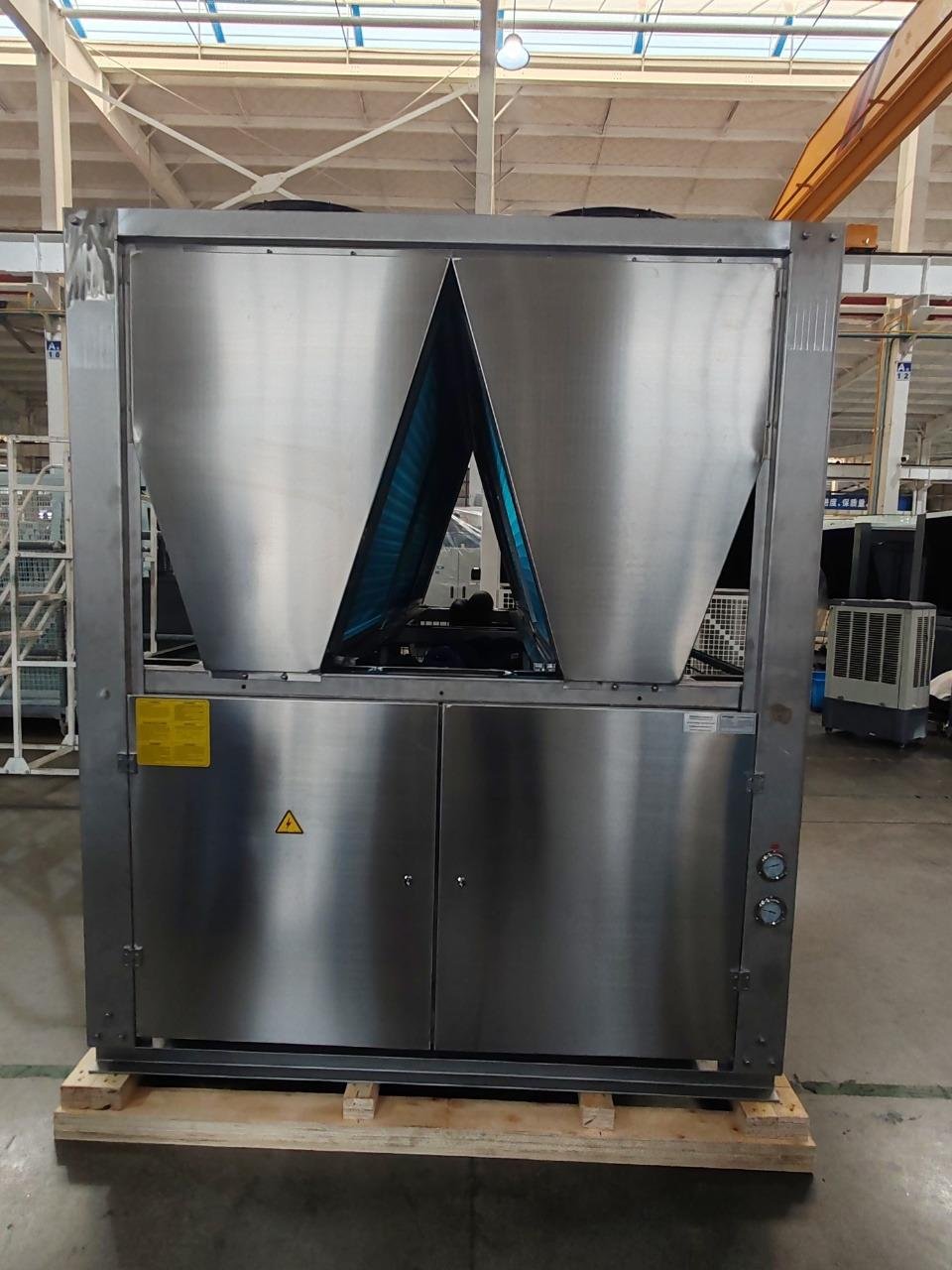

Outdoor unit, dust-proof, quieter

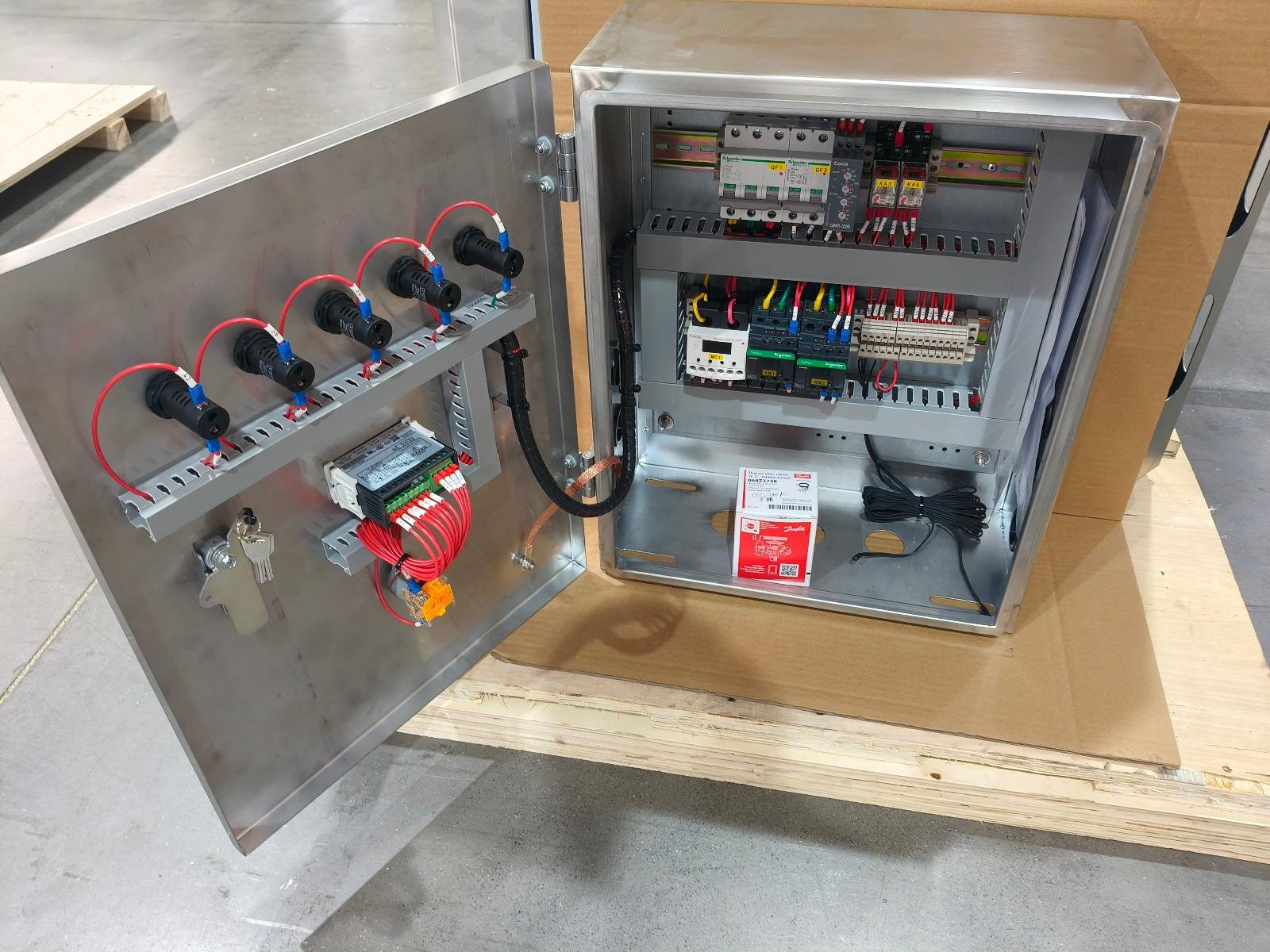

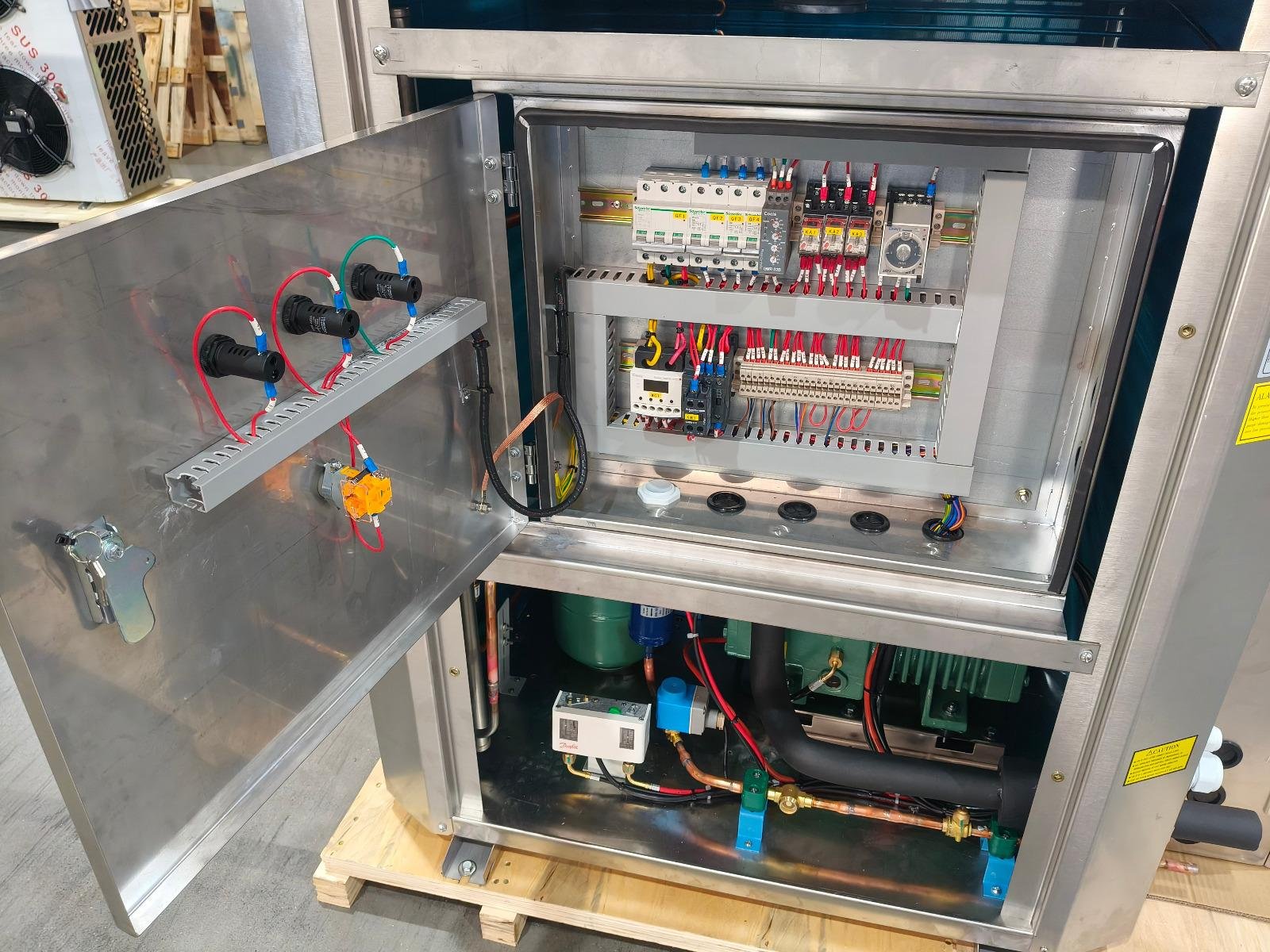

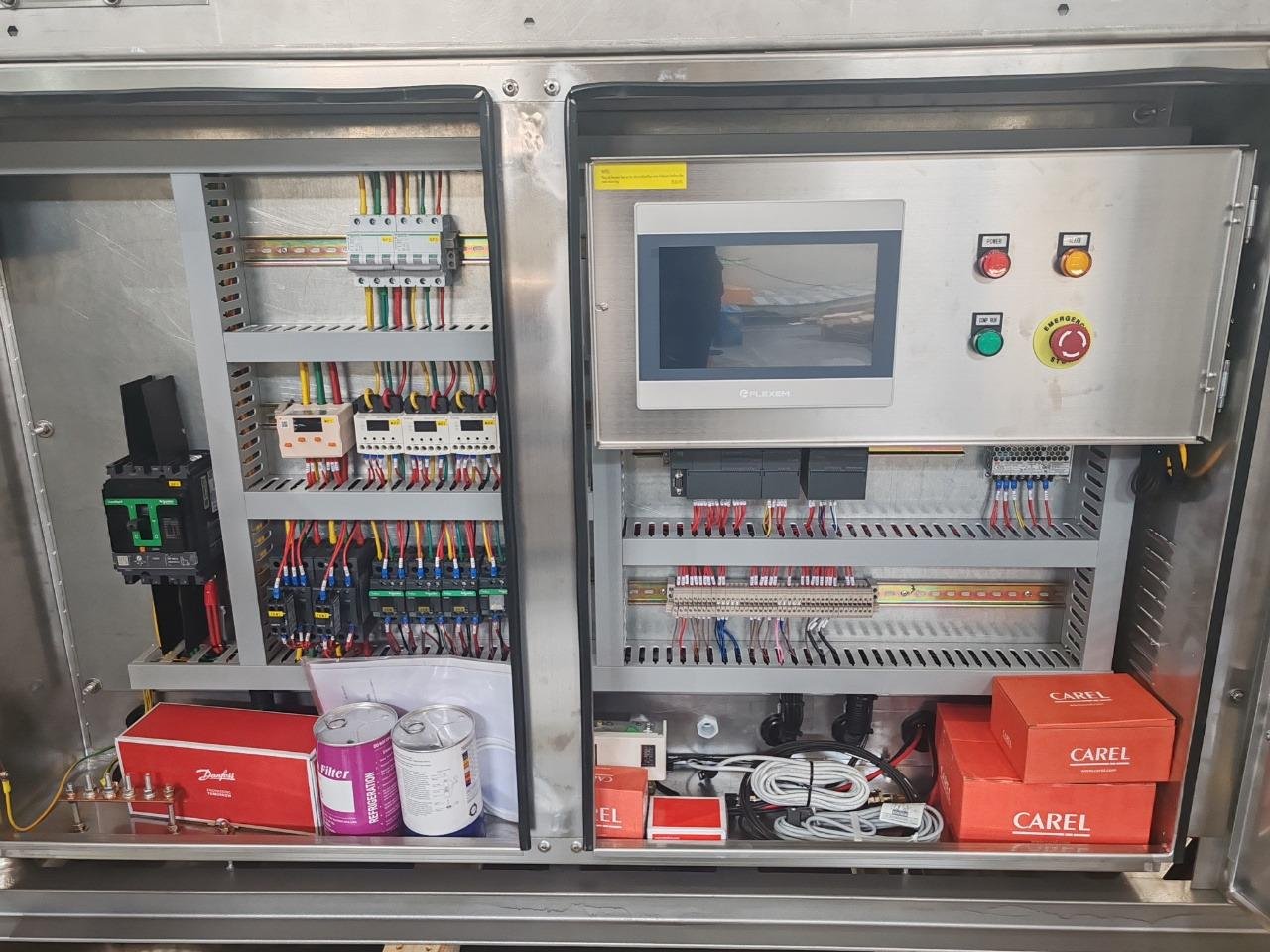

Built-in electric components are optional

2. Model code

X B 12 M Y

X: Outdoor unit

B: Compressor brand: Bitzer

12: Compressor nominal power(HP)

M: Temperature: M: -10~+5℃, L: -15~-30℃

Y: Refrigerant: Y: R404A

3. Specification

Bitzer refrigeration condensing unit: base on condensing Temp 45℃

Temperature: -10~5℃, Refrigerant: R404A, R448A, R449A, R507A

Temperature: -15~-30℃, Refrigerant: R404A, R448A, R449A, R507A

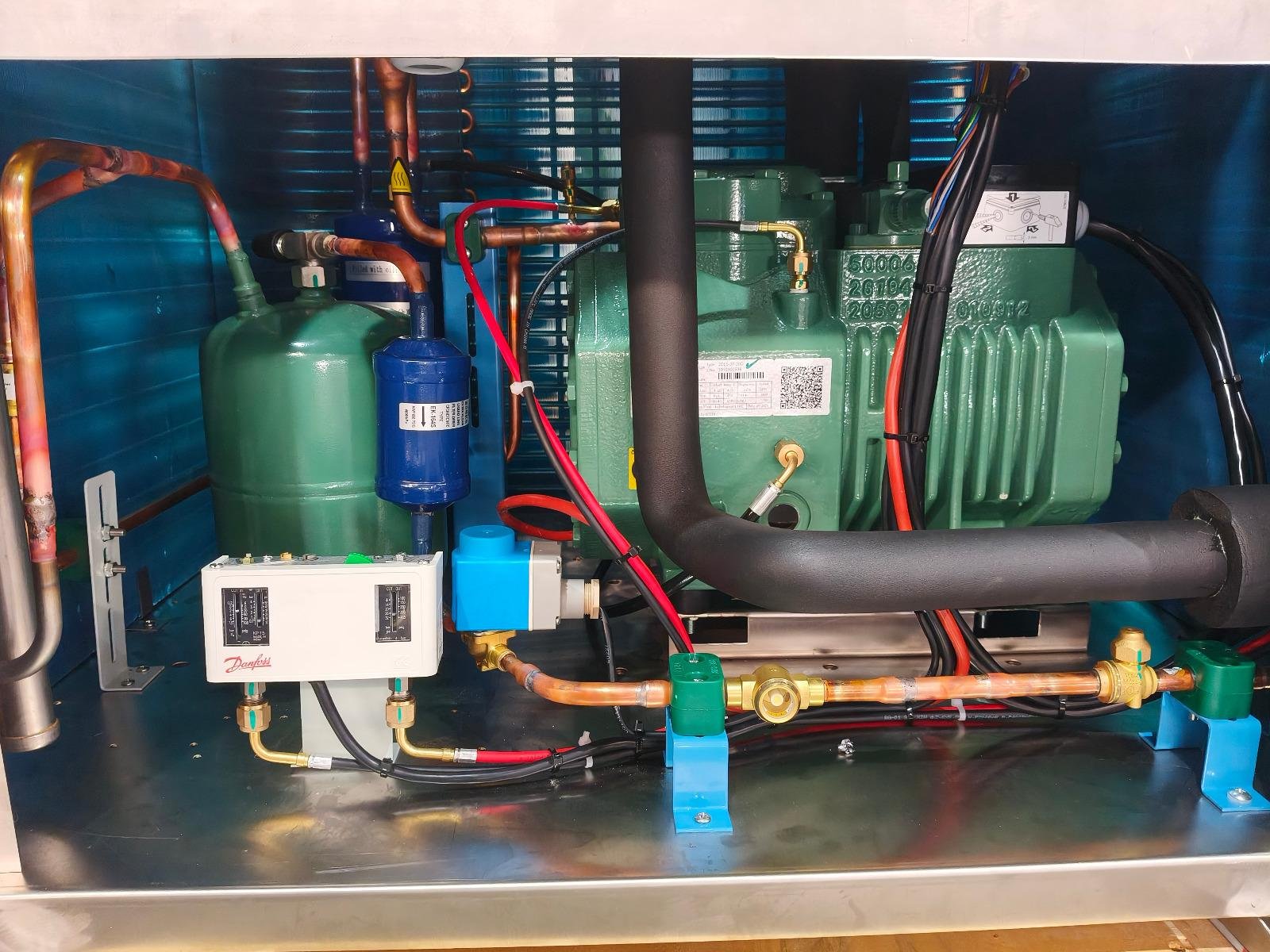

CRYO SYSTEMS Bitzer refrigeration condensing unit components:

① Compressor② Condenser③ Oil heating④ liquid receiver

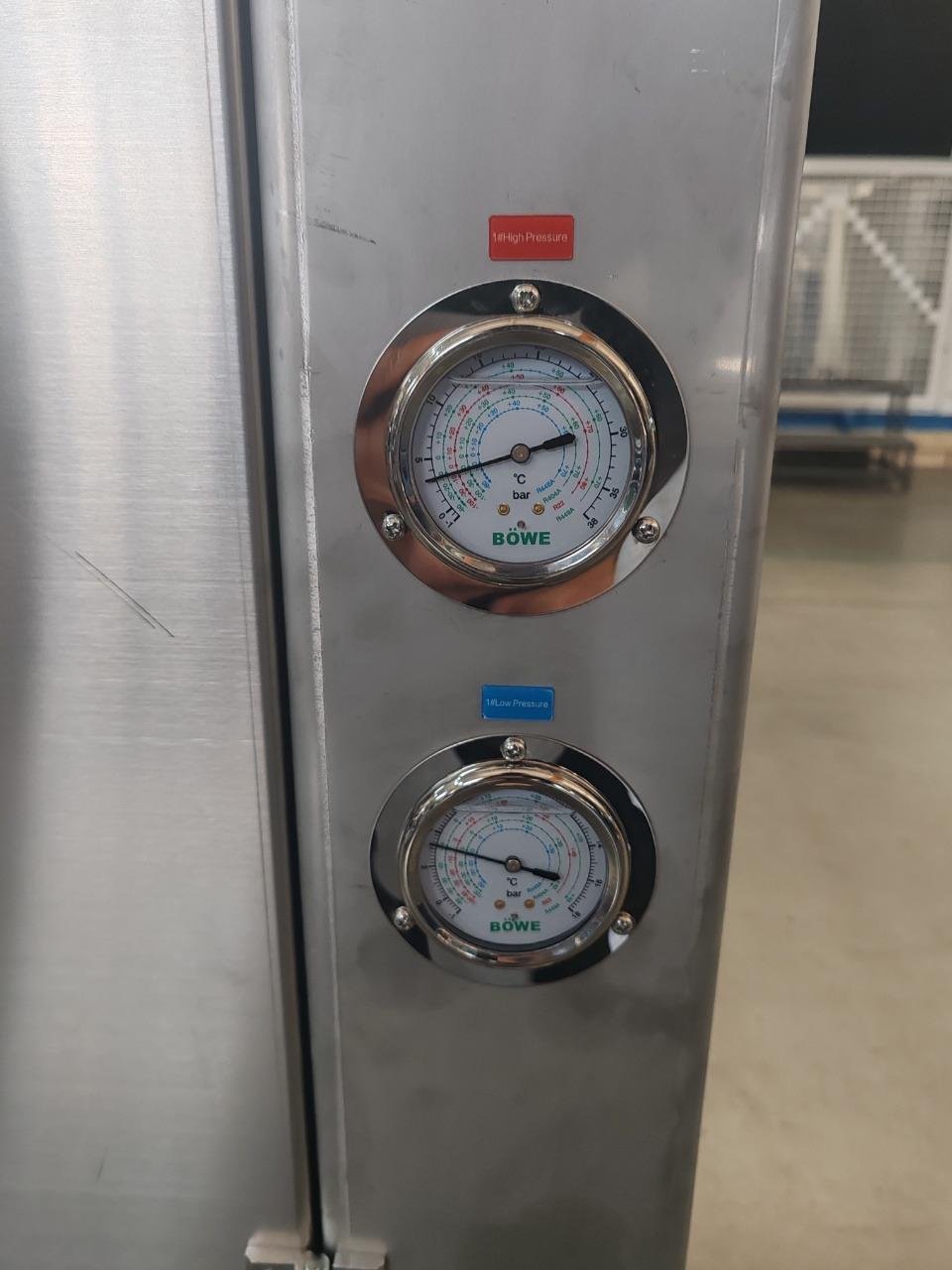

⑤ Filter ⑥ Sight glasser ⑦ H/L pressure ⑧ Mechanical pressure switch

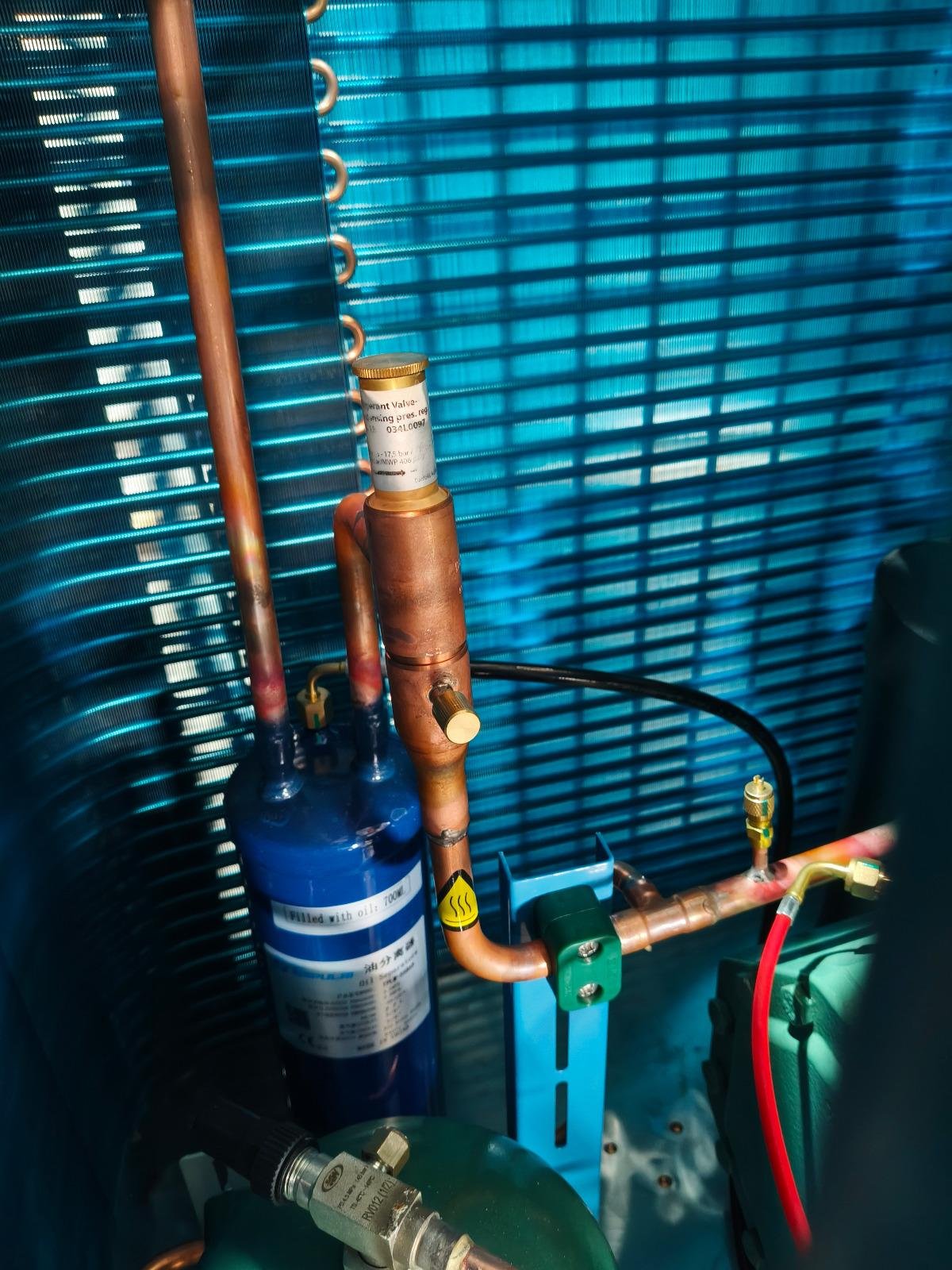

⑨ Solenoid valve ⑩ Vibration Eliminator ⑪ Oil Separator ⑫ Oil/liquid accumulator

⑬ Oil pressure protection ⑭ Low pressure control

2HP~4HP:

Standard: ①②③④⑤⑥⑦⑧; Optional: ⑨⑭

9HP~14HP:

Standard: ①②③④⑤⑥⑦⑧; Optional: ⑨⑩⑪⑫⑭

18HP~34HP:

Standard: ①②③④⑤⑥⑦⑧⑩⑪⑫⑬; Optional: ⑨⑭
