GS insPIRe CH Freezer Panels

Name: GS insPIRe CH Freezer Panels
Brand: Gór-Stal

GS insPIRe CH freezer panels from Gór-Stal are PIR-core panels for walls and ceilings in cold rooms and freezers, mounted vertically or horizontally. They have a declared heat transfer coefficient of 0.022 W/m·K, lengths up to 16.5 m (54 ft) and a double lock joint.

Talk to our team

Or call (201) 256-1231

Full description

Polyisocyanurate Freezer Panels

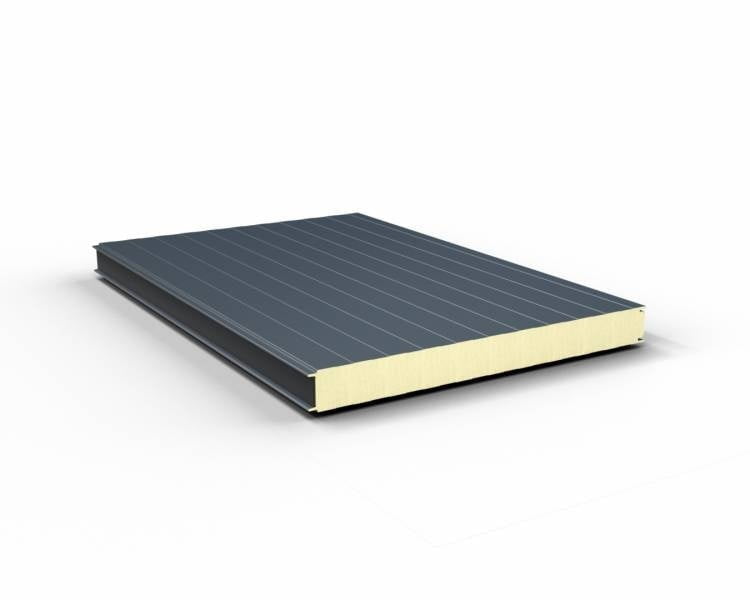

The GS insPIRe® CH freezer panels are designed for walls and ceilings in cold rooms and freezers, and other facilities with controlled temperature and humidity.
From Gór-Stal

The freezer panels can be used to erect free-standing buildings and make cold rooms or freezers inside existing buildings. The panels can be mounted both vertically and horizontally as single and multi-span elements.

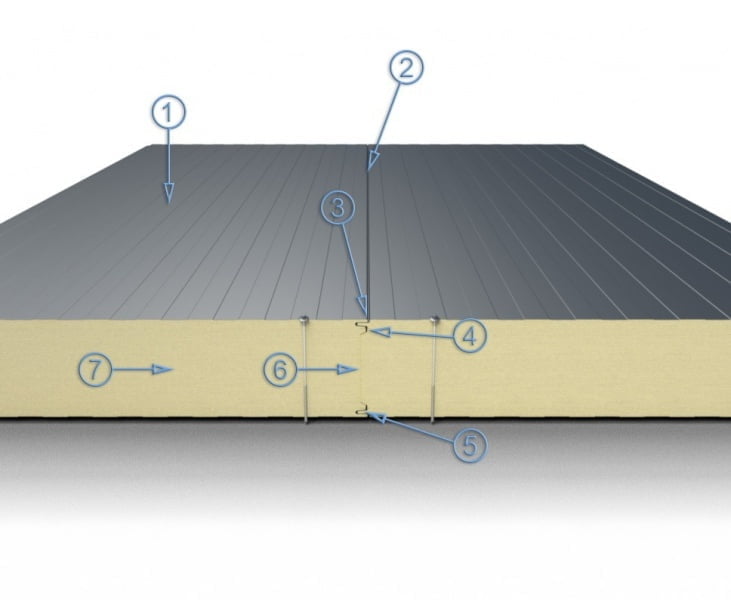

The profiling of the metal cladding makes the walls look aesthetically pleasing
Sealing compound applied at the construction site
A large radius of profiling of the lock ensuring the integrity of the protective coatings
Contoured edges facilitate assembly and increase thermal insulation

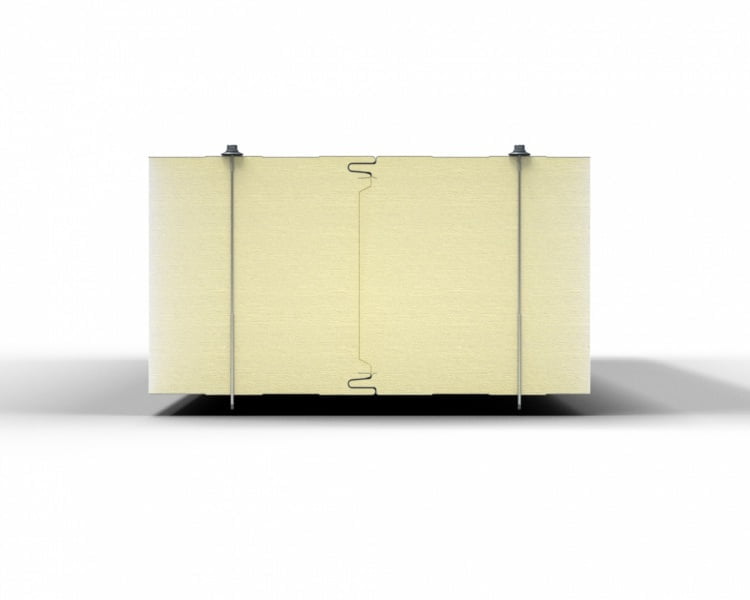

Double lock connecting the panels guaranteeing high fire tightness properties
Labyrinth core contact eliminating thermal bridge
Core made of rigid PIR foam with very good thermal insulation and fire properties

Technical Information

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

L – Linear

M – Microfiltered

R – Grooved

F – Wavy

Downloads

DoP(EN), GS PIR CH, nr.2020_2

Leaflet_Sandwich Panels

Specifications

Type of core	Rigid polyisocyanurate foam (PIR)
Declared heat transfer coefficient λD [W/m*K]	0.022
Thickness [mm]	100	120	160	180
R value	25.8	31.5	40.6	51.6
*Mass [kg/m^2]	12.6	13.4	15.0	16.6
Maximum length [m]	16.5
Total width [mm]	1020 / 1160 (for thickness ≥ 60mm and profiles L, M, and F)
Modular width [mm]	1000 / 1140 (for thickness ≥ 60mm and profiles L, M, and F)
**Exterior lining profiles for 1000 mm modular widths	L - Linear, M - Microfiltered, F - Wavy, R - Grooved
**Exterior lining profiles for 1140 mm modular widths	L - Linear, M - Microfiltered, F - Wavy
Interior lining profiles	L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard exterior lining colors for 1140mm modular widths	RAL 7016	RAL 9002	RAL 9006	RAL 9007
**Standard exterior lining colors for 1140mm modular widths	RAL 9010
**Standard interior lining colors	RAL 9002	RAL 9010
***Fire resistance classification for MAX panels	EI 30
Reaction to fire	Bs-1, d0
Fire spread	Non Fire Spreading
Certificates, approvals, seals of approval	DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509 - Fire resistance classification - Hygienic Certification
