GS insPIRe S Refrigeration Panels

Name: GS insPIRe S Refrigeration Panels
Brand: Gór-Stal

GS insPIRe S Refrigeration Panels from Gór-Stal are PIR-core insulated panels for external curtain walls and internal partition walls in skeletal structures, installed vertically or horizontally. They come 40 to 120 mm (1.6 to 4.7 in) thick, R-9.5 to R-29.9, in 1,000 mm (39 in) modular widths and lengths up to 16.5 m (54 ft).

Talk to our team

Or call (201) 256-1231

Full description

Polyisocyanurate Refrigeration Panels
GS insPIRe® S refrigeration panels are designed for external curtain walls and internal partition walls in skeletal structures. The panels can be installed both vertically and horizontally as single and multi-span wall elements.
From Gór-Stal

The refrigeration panels plate cladding are galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

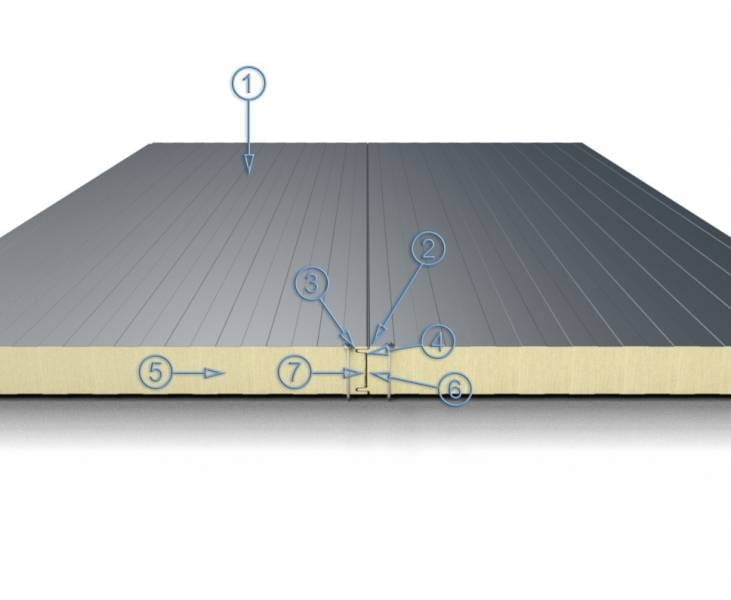

The profiling of the metal cladding makes the walls look aesthetically pleasing
A large radius of profiling of the lock ensuring the integrity of the protective coatings

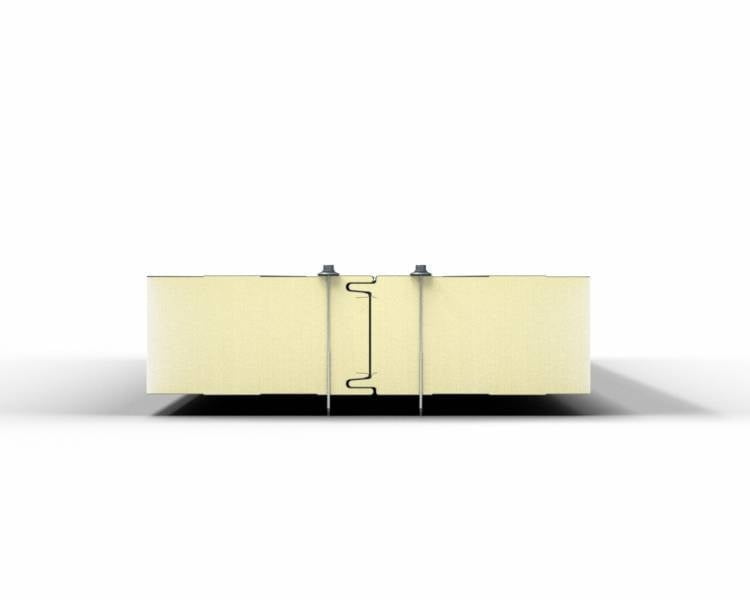

Double lock connecting the panels guaranteeing high fire integrity properties
Contoured edges facilitate assembly and increase thermal insulation
Core made of rigid PIR foam with very good thermal insulation and fire properties
Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
Aluminum foil prevents water vapor from entering the polyurethane foam core

Technical Information

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

L – Linear

F – Wavy

M – Microfiltered

R – Grooved

P – Flat

Downloads

DoP(EN), GS PIR S, nr.2020_2

Leaflet_Sandwich Panels

Specifications

Type of core	Rigid polyisocyanurate foam (PIR)
Declared heat transfer coefficient λD [W/m*K]	0.022
Thickness [mm]	40	60	80	100	120
R value	9.5	15	20.3	25.8	29.9
*Mass [kg/m^2]	10.0	11.0	11.8	12.6	13.4
Maximum length [m]	16.5
Total width [mm]	1020 / 1160 (for thickness ≥ 60mm and profiles L, M, and F)
Modular width [mm]	1000 / 1140 (for thickness ≥ 60mm and profiles L, M, and F)
**Exterior lining profiles for 1000 mm modular widths	L - Linear, M - Microfiltered, F - Wavy, R - Grooved, P - Flat
**Exterior lining profiles for 1140 mm modular widths	L - Linear, M - Microfiltered, F - Wavy, P - Flat
Interior lining profiles	L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard exterior lining colors for 1000mm modular widths	**Standard exterior lining colors for 1140mm modular widths	RAL 7016	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard interior lining colors	RAL 9002	RAL 9010
***Fire resistance classification for MAX panels	EI 20	EI 20	EI 30
Reaction to fire	Bs-1, d0
Fire spread	Non Fire Spreading
Certificates, approvals, seals of approval	DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509 - Fire resistance classification - Hygienic Certification
