GS insPIRe FIRE CH Fire Resistant Sandwich Panels

Name: GS insPIRe FIRE CH Fire Resistant Sandwich Panels
Brand: Gór-Stal

GS insPIRe FIRE CH Fire Resistant Sandwich Panels from Gór-Stal are polyisocyanurate panels with two galvanized steel claddings coated with organic polyester varnish, classified EI 60 for fire resistance. They are 120 mm (4.7 in) thick, R-28.4, in 1,000 or 1,140 mm (39 or 45 in) total widths.

Talk to our team

Or call (201) 256-1231

Full description

NEW! Polyisocyanurate Fire Resistant Sandwich Panels
Fire resistant sandwich panels GS insPIRe® FIRE CH with increased fire resistance class EI 60 allows to obtain a properly shaped panel and consists of 2 galvanized steel claddings and coated with organic polyester varnish.
From Gór-Stal

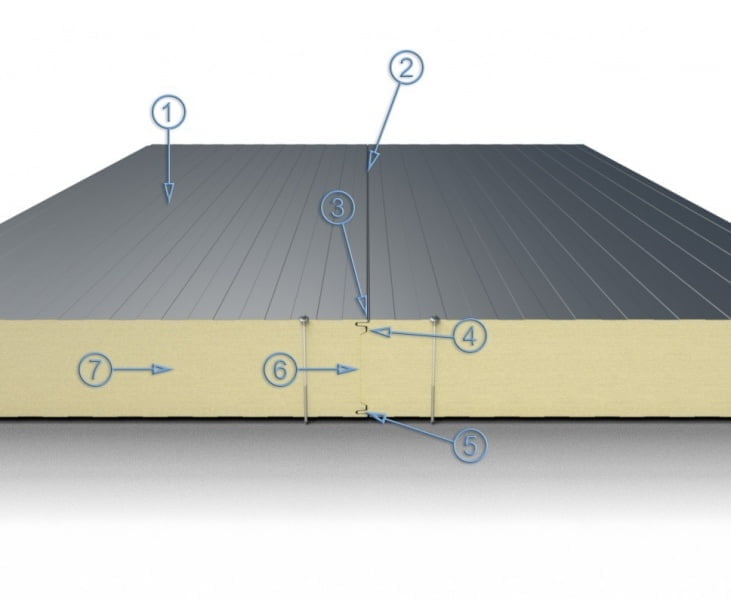

The profiling of the metal cladding makes the walls look aesthetically pleasing
Sealing compound applied at the construction site
A large radius of profiling of the lock ensuring the integrity of the protective coatings
Contoured edges facilitate assembly and increase thermal insulation

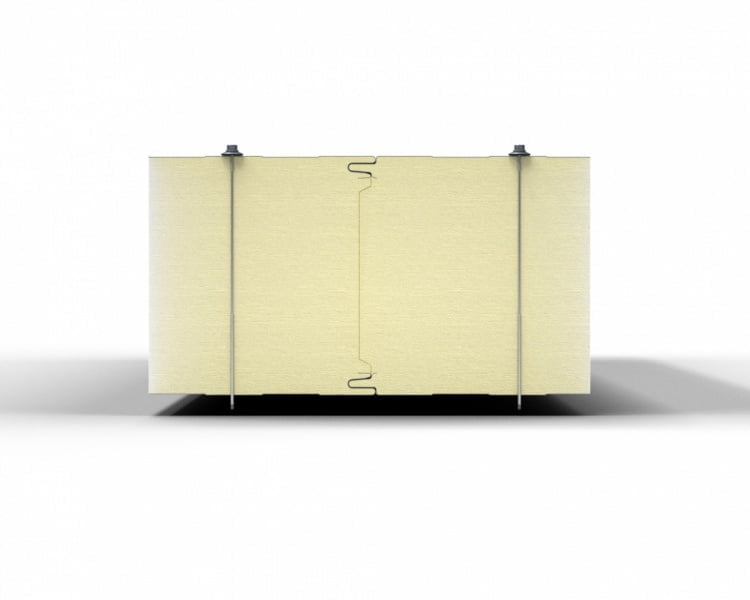

Double lock connecting the panels guaranteeing high fire tightness properties
Labyrinth core contact eliminating thermal bridge
Core made of rigid PIR foam with very good thermal insulation and fire properties

Technical Information

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

L – Linear

M – Microfiltered

F – Wavy

Downloads

Leaflet_Sandwich Panels

Specifications

Type of core	Rigid polyisocyanurate foam (PIR)
Declared heat transfer coefficient λD [W/m*K]	0.019
Thickness [mm]	120
R value	28.4
*Mass [kg/m^2]	70
Maximum length [m]	2.0 - 6.0
Total width [mm]	1000 / 1140
**Exterior lining profiles for 1000 mm modular widths	L - Linear, M - Microfiltered, F - Wavy
Interior lining profiles	L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard exterior lining colors for 1140mm modular widths	RAL 7016	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard interior lining colors	RAL 9002	RAL 9010
***Fire resistance classification	EI 60
Reaction to fire	NRO, Bs-1, d0
Certificates, approvals, seals of approval	DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509 - Fire resistance classification
