GS insPIRe U MAX Cold Storage Panels

Name: GS insPIRe U MAX Cold Storage Panels
Brand: Gór-Stal

GS insPIRe U MAX cold storage panels from Gór-Stal are modified-PIR-core panels for external curtain walls and internal partition walls, with hidden fastening. They come in 1,000 mm (39 in) modular widths and lengths up to 16.5 m (54 ft), with a declared heat transfer coefficient of 0.019 W/m·K.

Talk to our team

Or call (201) 256-1231

Full description

NEW! Polyisocyanurate Panels

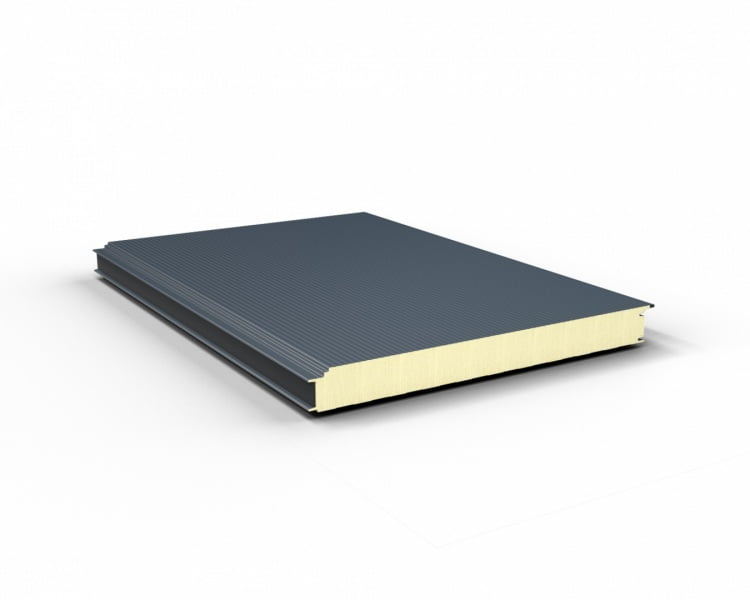

GS insPIRe® U MAX cold storage panels are designed for external curtain walls and internal partition walls in skeletal structures. The panels can be installed both vertically and horizontally as single and multi-span wall elements.
From Gór-Stal

Cold Storage Panels

Hidden fastening, invisible from the facade, makes these cold storage panels very attractive in terms of architecture and functionality. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

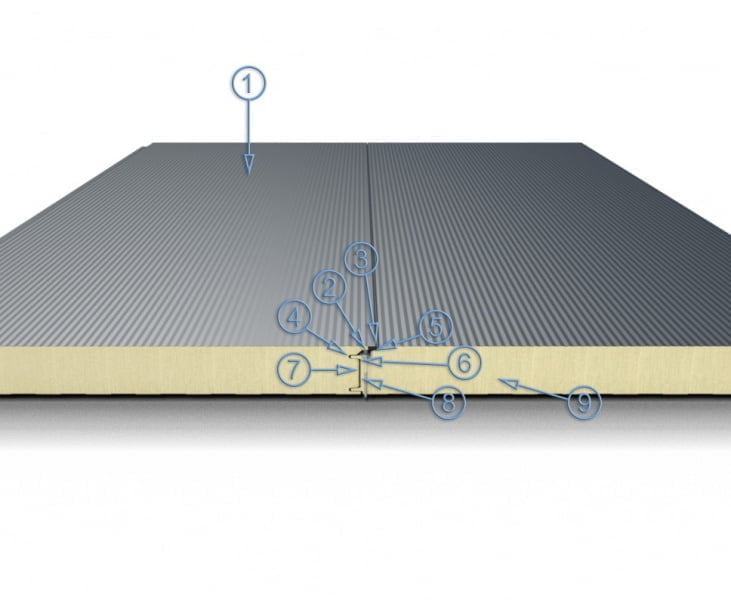

The profiling of the metal cladding makes the walls look aesthetically pleasing

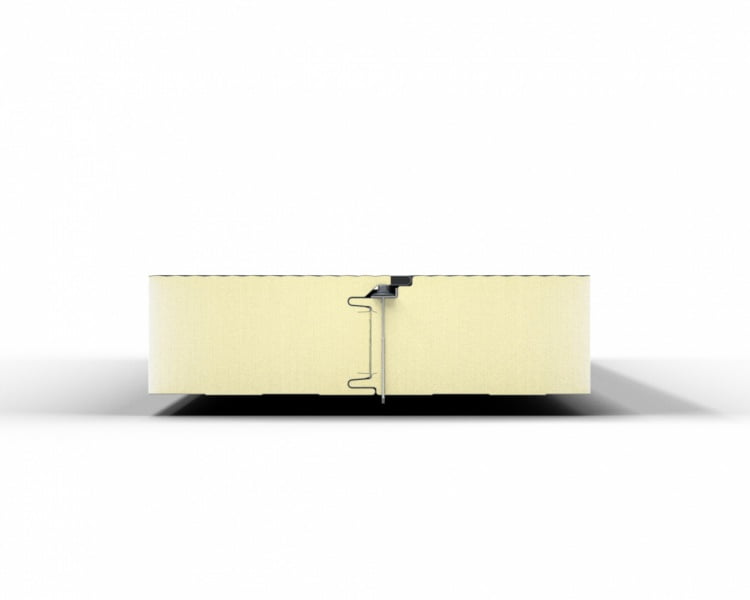

Hidden fastening connector giving the façades a more uniform appearance
A large radius of profiling of the lock ensuring the integrity of the protective coatings
Double lock connecting the panels guaranteeing high fire integrity properties
Auxiliary groove for easy positioning of the fastening connector
Contoured edges facilitate assembly and increase thermal insulation
Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
Aluminum foil prevents water vapor from entering the polyurethane foam core
Core made of rigid PIR foam with very good thermal insulation and fire properties

Technical Information

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

R – Grooved

P – Flat

M – Microfiltered

L – Linear

F – Wavy

Downloads

Leaflet_Sandwich Panels

DoP(EN), GS PIR U MAX, nr.2020_2

Specifications

***Fire resistance classification for MAX panels
Type of core	Modified PIR
Declared heat transfer coefficient λD [W/m*K]	0.019
Thickness [mm]	60	80	100	120	140
R value	14.9	21.8	28.4	35.5	40.6
*Mass [kg/m^2]	11.3	12.1	12.9	13.7	14.5
Maximum length [m]	16.5
Total width [mm]	1050
Modular width [mm]	1000
**Exterior lining profiles for 1000 mm modular widths	L - Linear, M - Microfiltered, F - Wavy, R - Grooved, P - Flat
Interior lining profiles	L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths	RAL 3000	RAL 5010	RAL 6011	RAL 7016	RAL 7035
**Standard exterior lining colors for 1000mm modular widths	RAL 8017	RAL 9002	RAL 9006	RAL 9007	RAL 9010
**Standard interior lining colors	RAL 9002	RAL 9010
Reaction to fire	Bs-1, d0
Fire spread	Non Fire Spreading
Certificates, approvals, seals of approval	DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509
