GS PIR D Insulated Metal Roofing Panels

Name: GS PIR D Insulated Metal Roofing Panels
Brand: Gór-Stal

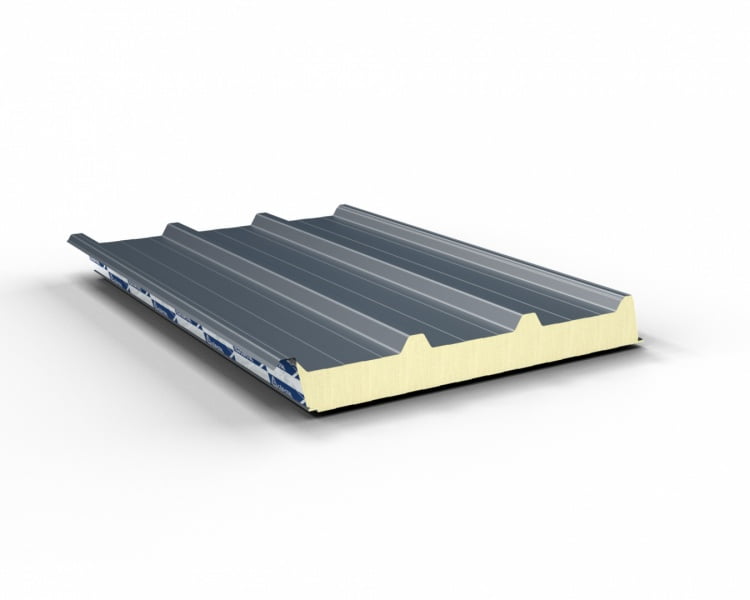

GS PIR D Insulated Metal Roofing Panels from Gór-Stal are PIR core panels for roofing, with deeply profiled trapezoidal outer cladding, screw-fastened to wooden, steel or concrete structure. They come 1,000 mm (39 in) modular width, 40 to 200 mm (1.6 to 7.9 in) thick, R-10.3 to R-40.6, in lengths of 2.0 to 12.0 m (6.6 to 39 ft).

Talk to our team

Or call (201) 256-1231

Full description

Polyisocyanurate Insulated Metal Roofing Panels
GS PIR D insulated metal roofing panels are designed for roofing. They are characterized by a very deep profiling of the trapezoidal outer cladding. This is related to the transmission of long-term service loads.
From Gór-Stal

The insulated metal roofing panels are fastened with screws to the wooden, steel or reinforced concrete structure. The minimum roof pitch is 3 ° (5.2%) without skylights and 5 ° (8.7%) for covering panels joined along their length. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The modular width of the panel is 1000 mm, and its standard lengths range from 2.0 m to 12.0 m. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

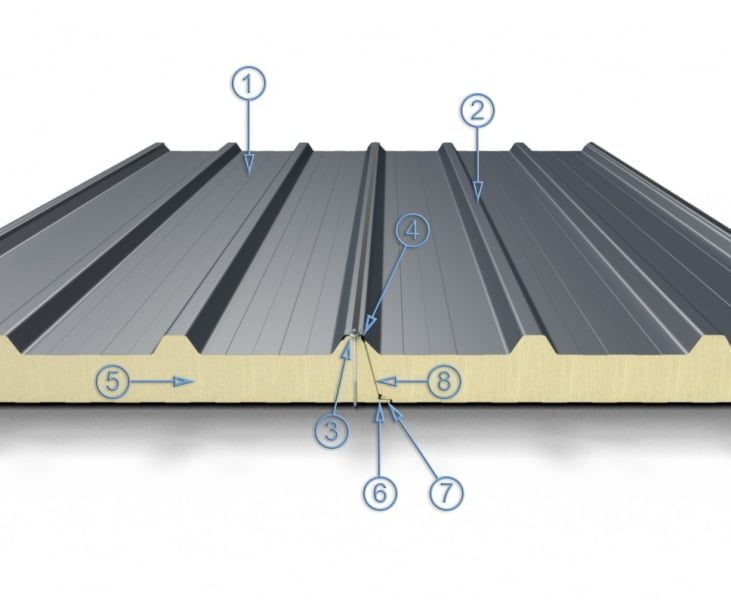

The profiling of the metal cladding makes the walls look aesthetically pleasing
A large radius of cladding profiling ensuring the integrity of the protective coatings
Continuous polyurethane gasket applied during the production process
Protection chamber against water capillary action
Core made of rigid PIR foam with very good thermal insulation and fire properties

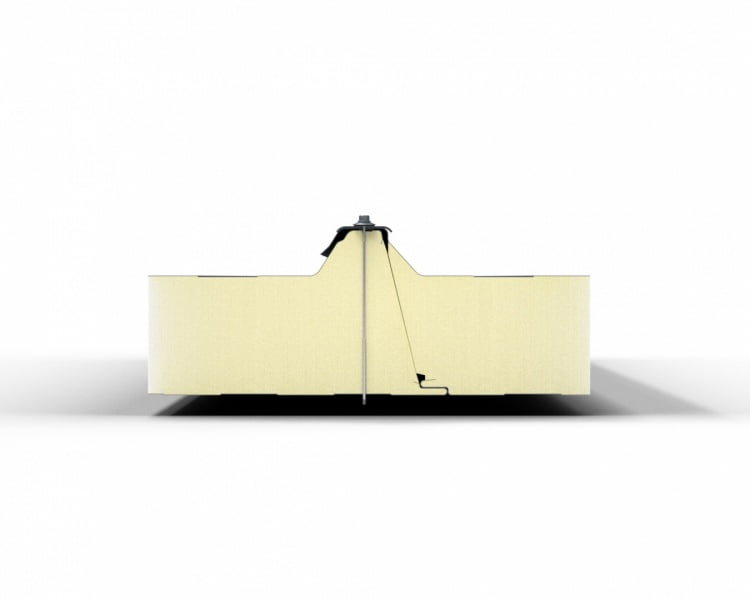

Contoured edges facilitate assembly and increase thermal insulation
Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
Aluminum foil prevents the penetration of water vapor into the core of polyisocyanurate foam

On special customer request, we supply panels shorter than 2.0 m and longer than 12.0 m, with a maximum length of 16.5 m.

Technical Information

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

T – Trapezoidal

Downloads

Leaflet_Sandwich Panels

DoP(EN), GS PIR D, nr.2020_2

Specifications

Type of core	Rigid polyisocyanurate foam (PIR)
Declared heat transfer coefficient λD [W/m*K]	0.022
Thickness [mm]	40/80	60/100	80/120	100/140	120/160	160/200
R value	10.3	15.4	21.0	25.8	31.5	40.6
*Mass [kg/m^2]	10.4	11.2	12.0	12.8	13.6	15.4
Maximum length [m]	16.5
Total width [mm]	1104
Modular width [mm]	1000
**Exterior lining profiles for 1000 mm modular widths	T - Trapezoidal
Interior lining profiles	L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths	RAL 9002	RAL 9006	RAL 9007	RAL 9010	RAL 3000	RAL 5010
**Standard exterior lining colors for 1000mm modular widths	RAL 6011	RAL 7035	RAL 7016	RAL 8017
**Standard interior lining colors	RAL 9002	RAL 9010
***Fire resistance classification for MAX panels	REI 30 / RE 120	REI 30 / RE 120	REI 30 / RE 120	REI 30 / RE 120
Reaction to fire	Bs-1, d0
Impact of external fire on the roof	BROOF
Certificates, approvals, seals of approval	DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509 - Fire resistance classification - Hygienic Certificate
